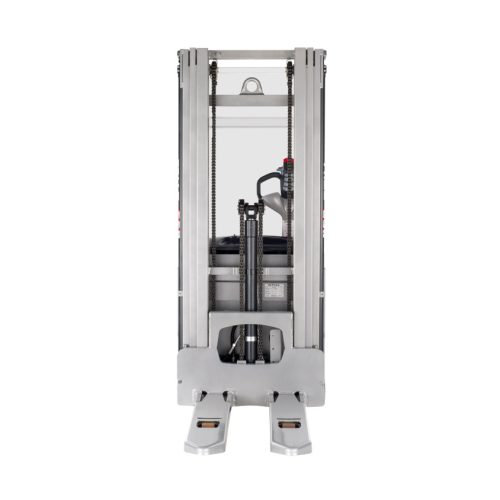

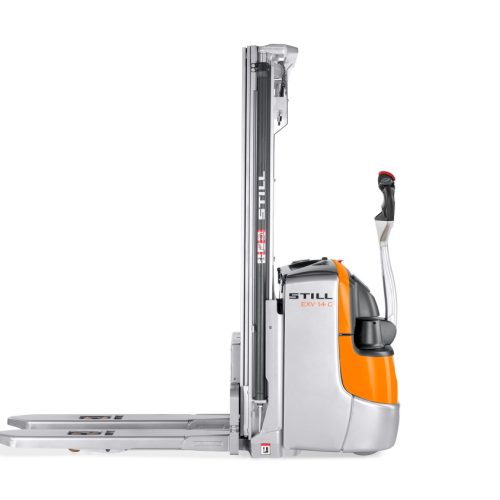

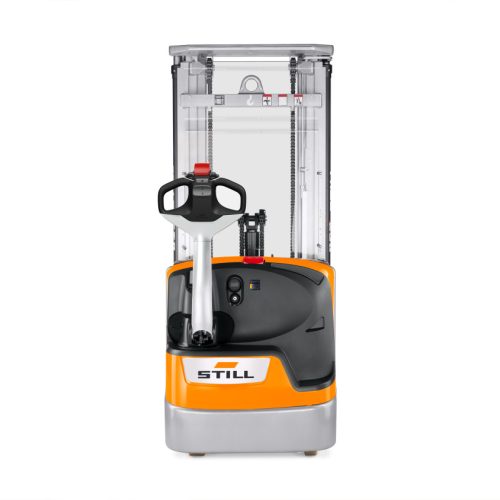

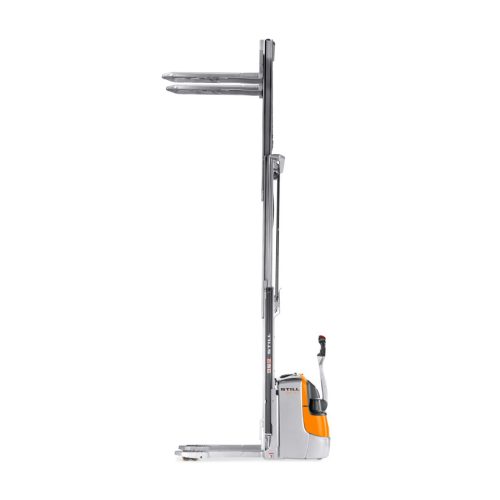

Thông tin về xe nâng điện mini Stacker Still EXV 10-14C:
1. Video giới thiệu:
2. Các thông số kỹ thuật chung:
|
Model
|
Maximum capacity (kg)
|
Maximum lift height (mm)
|
Travel speed (km/h)
|
Battery voltage (V)
|
|---|---|---|---|---|
| EXV 10 Basic / Li-Ion | 1.000 | 1.912 | 6.0 | 24 |
| EXV 10 / Li-Ion | 1.000 | 4.224 | 6.0 | 24 |
| EXV 12 / Li-Ion | 1.200 | 4.386 | 6.0 | 24 |
| EXV 12i / Li-Ion | 1.200 | 4.386 | 6.0 | 24 |
| EXV 14 C / Li-Ion | 1.400 | 5.466 | 6.0 | 24 |
| EXV 14i C / Li-Ion | 1.400 | 5.466 | 6.0 | 24 |
3. Các tính năng nổi bật:
| VẬN HÀNH DỄ DÀNG | |
![]() |
Flexible, intuitive operation of all control elements on the tiller head with one hand, without the need to change grip, naturally for both left- and right-handed operators |
| Reliable availability thanks to large colour display with battery status display | |
| Optimal ergonomics and reduced physical strain for the operator thanks to electric driving, lifting and lowering functions | |

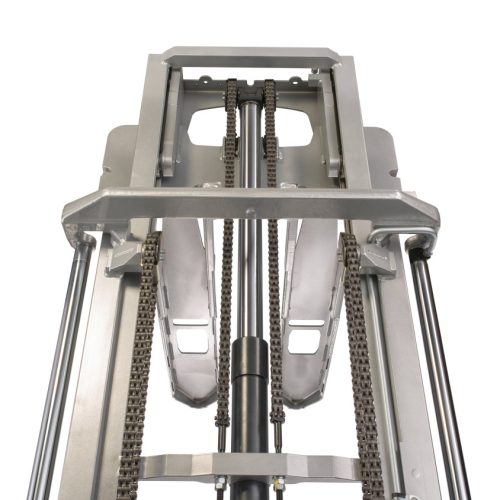

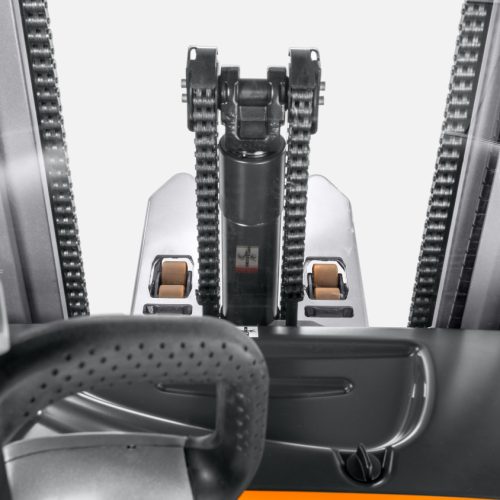

| Clear view through the mast to the fork tips facilitates hassle-free pallet handling | |
| Unbeatable handling performance: powerful motor, high residual load capacity and responsive control elements | |
| With iGo systems vehicles, additional vehicles can be added at any time so as to expand transportation capacity |
| SỨC MẠNH VƯỢT TRỘI | |
![]() |
Power meets safety: the four-wheel chassis ensures outstanding stability and effective performance |
| Reliable excellent performance thanks to the powerful yet lowmaintenance AC motor | |
| New level of precision and safety for user and load thanks to the responsive proportional valve control | |
| Optimal availability, low-maintenance and high performance thanks to the optional lithium-ion technology | |
| Smooth and precise electrical steering (for the EXV 14-20) | |
| Software-based transport controls for the EXV iGo systems enable optimal fleet utilisation, whilst guaranteeing a high level of process reliability, traffic management, visualisation of truck movements, battery charge status monitoring and reduced error rates – the flow of materials and information is always reliable and mapped comprehensively and transparently |
| AN TOÀN HÀNG ĐẦU | |
![]() |
Maximum driver safety thanks to the low-entry truck frame and load backrests |
| Initial lift ensures stable and low-vibration driving performance, even if there are slight gradients or unevenness in the floor | |
| Safety for man and machine: OptiSpeed tiller and automatic stop mechanism when the tiller is released | |
| Safe manoeuvring even in restricted space thanks to creep speed mode | |
| Information on the lift height at a glance – on the coloured load capacity display | |
| Estimate the load correctly: Dynamic Load Control can be used to estimate the load and the corresponding maximum lift height (for the EXV 14-20) | |
| EXV iGo systems improves transport quality and eliminates the risk of injury and damage to people, trucks, warehouse equipment and goods thanks to smart safety functions |
| VẬN HÀNH LINH HOẠT | |
![]() |
Precision even in confined spaces thanks to compact dimensions |
| Well-equipped for a wide range of applications with different driving programmes | |

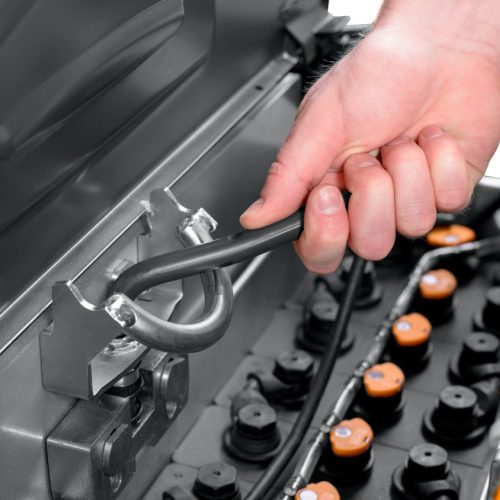

| Ready for use at all times: the battery can be charged and interim charged flexibly from any location without the need for a fixed charging station | |
| iGo systems trucks can also be operated manually if required: this increases flexibility, safeguards process and material flow and enables easy access to goods |
| KẾT NỐI THÔNG TIN | |
![]() |
Compact information: all relevant truck information is available at a glance in the STILL neXXt fleet web application. |
| Innovative STILL FleetManager keeps driver and truck safe: operator management and shock detection as well as damage and cost minimisation thanks to access protection | |
| Optimisation of the goods flow thanks to straightforward connection to existing material flow management systems via MMS provision | |
| Different iGo systems trucks can be combined with one another, and with manual transport systems and stationary automation systems |
